Abrasion Proof Flexible Copper Busbar / UPS Copper Bus Bar Home
Depot
Flexible Copper Busbar Advantages:
Excellent electrical conductivity.
High bonding strength.
Available for bending, drilling, stamping etc.
Pure T2 copper
Purpose
The use of copper is much wider than pure iron. Every year, 50% of
copper is electrolyzed to pure copper for use in the electrical
industry. The copper mentioned here must be very pure. It contains
more than 99.95% copper. A very small amount of impurities,
especially phosphorus, arsenic and aluminium, will greatly reduce
the conductivity of copper. It is mainly used to make electrical
equipment such as generators, buses, cables, switchgear,
transformers, heat exchangers, pipes, flat-plate collectors of
solar heating devices and other heat conducting devices. Oxygen
content in copper (which is easy to mix with a small amount of
oxygen in copper smelting) has a great influence on conductivity.
Copper used in electrical industry must be oxygen-free copper. In
addition, impurities such as lead, antimony and bismuth can not
bind the crystals of copper together, resulting in hot brittleness
and affecting the processing of pure copper. This kind of pure
copper with high purity is usually refined by electrolysis: Impure
Copper (i.e. crude copper) is used as anode, pure copper as
cathode, and copper sulfate solution as electrolyte. When the
current passes through, the Impure Copper on the anode melts
gradually, and the pure copper deposits gradually on the cathode.
The purity of copper obtained by this refinement can reach 99.99%.
Copper is also used in short circuit rings of motors,
electromagnetic heating inductors, and high-power electronic
components, wiring terminals and so on.
Copper is also used in doors, windows, armrests and other furniture
and decoration.

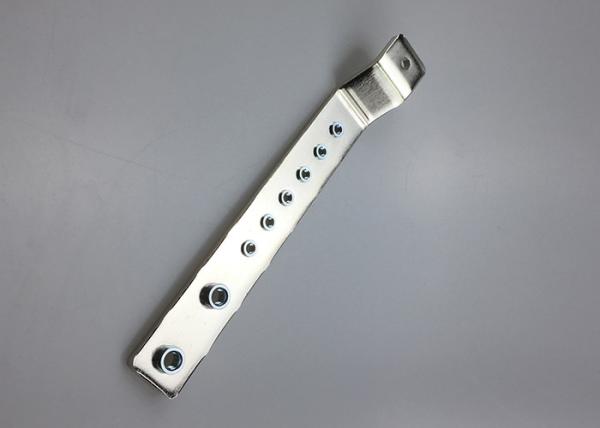

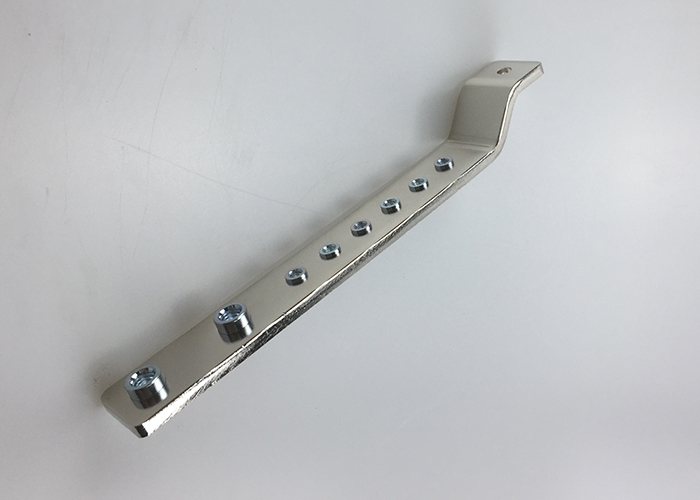

Flexible Copper Busbar Details
| Product Name: Flexible Copper Busbar |
| Thickness: 4.0mm |
| Width: 25mm |
| Length: 227mm |
| Feature: Abrasion Proof |
| Finish: Plate with nickel |
| Usage: UPS |
Flexible Copper Busbar Technical Parameters:
| Thickness×Width (mm) | 1.5 -20× (15-500) |
| Copper content | 99.98% |
| Density (g/cm³) | 8.9 |
| Resistivity (Ωmm²/m) | 0.018 |
| Tensile Strength (MPa) | ≥250 |
| Elongation ( %) | 45-50% |
| melting Point | 1083℃ |
Flexible Copper Busbar Conventional Types and Sizes:
| Types | Total Thickness | Thickness of copper | Width | Length | Weight(kg/m) |
| BG-1.0*550*650 | 1.0 | 0.3mm+0.3mm | 550 | 650 | 3.18 |
| BG-1.5*550*650 | 1.5 | 0.3mm+0.3mm | 550 | 650 | 4.77 |
| BG-2.0*220*460 | 2.0 | 0.3mm+0.3mm | 220 | 460 | 1.80 |
| BG-3.0*350*750 | 3.0 | 0.3mm+0.3mm | 350 | 750 | 7.01 |
| BG-4.0*270*1056 | 4.0 | 0.3mm+0.3mm | 270 | 1056 | 10.15 |
| BG-5.0*106*412 | 5.0 | 0.3mm+0.3mm | 106 | 412 | 1.94 |
| BG-6.0*268*333 | 6.0 | 0.3mm+0.3mm | 268 | 333 | 4.77 |
| BG-10*100 | 10 | 0.3mm+0.3mm | 100mm | ≤6000mm | 53.4 |
| BG-12*120 | 12 | 0.3mm+0.3mm | 120mm | ≤6000mm | 76.896 |
| Others | | | As request | | |
1. Different Material Support
Stainless Steel, Steel, Brass, Bronze, copper, Beryllium copper,
Iron, Aluminum, Zinc, Zamak, ect.
2. Exquisite Processing
Stamping, CNC machining, casting, laser cutting, drilling, tapping, laser welding, butt welding, argon arc welding, CNC turning
surface grinder processing, cylindrical grinder processing
3. Multifarious Surface Treatment Provide
Sand blasting,Power coating,Painting,Anodization,Electrophoresis,
Zinc/Chrome/Nickel plating,Black oxidation
4. Advance Equipment
CNC turning centers, CNC machining centers, Precision grinding
machine, CNC milling machine, Swiss lathes,
Tapping machines, EDM wire cutting , drilling machine,
3-dimensional measuring instruments, projectors, test machine
Flexible Copper BusbarShow
